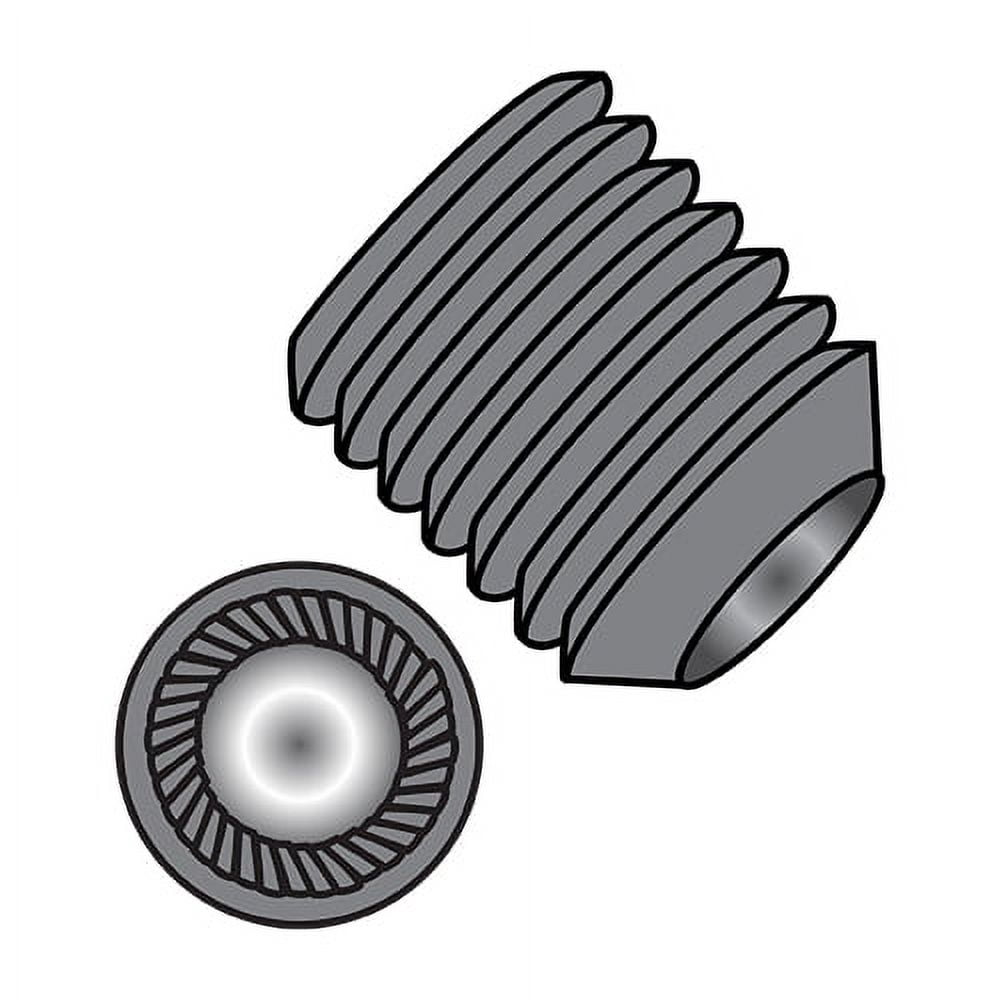

M8X12 Metric Socket Set Screw Knurl Cup Point Plain Imported (Pack Qty 50) BC-M8012SSCKI

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot. Used when a flush mounting, high strength screw is required. Commonly used in tools and dies where moving parts pass over the fastened area.

• The cup point is the most popular type of set screw, designed for fast, permanent and semi-permanent location of parts on shafts with hardness differential of 10-15 Rockwell C points and where cutting in of cup edge on the shaft is acceptable
• Metric socket set screws shall be made from an alloy steel which conforms to the following chemical composition requirements-- Carbon: 0.19-0.50%; Phosphorous: 0.05% maximum; Sulfur: 0.05% maximum; Lead: 0.35% maximum. Set screws shall also contain one or
• Metric socket set screws shall be heat treated by quenching in oil from above the transformation temperature and then tempered by reheating to meet the hardness requirements listed below
